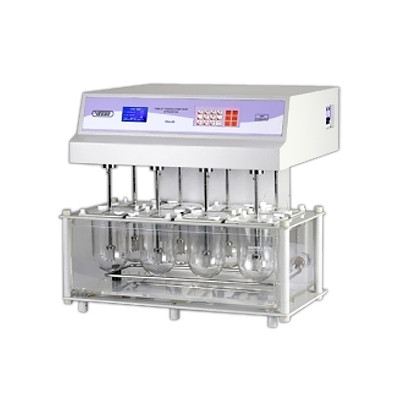

Tablet Dissolution Test Apparatus

Product Profile of Tablet Dissolution Test Apparatus
Tablet Dissolution Test Apparatus is a kind of 8/6 station microcontroller based instrument that is designed to conduct the test simultaneously in all vessels in similar conditions. The Test Apparatus is equipped with a large graphic LCD. The Tablet Dissolution Test Apparatus has dual channel system which ensures accurate and precise control of temperature in dissolution vessels as well as water bath. Tablet Dissolution Test Apparatus of model VDA 6D is incorporated with power failure indication program.

Veego Instruments Corporation is the manufacturer of Tablet Dissolution Test Apparatus. Veego Instruments Corporation is the supplier of laboratory instruments tape density test apparatus, potentiometric titrators, leak test apparatus, tablet hardness tester, tablet friability test apparatus, melting or boiling test apparatus. This range of products is useful for research and development and quality control laboratories attached to chemical, pharmaceutical and petrochemical industries.

Product Specification of Tablet Dissolution Test Apparatus
  • Accuracy: Speed accuracy: Better than ±1 RPM
  • Capacity: Vessel capacity: 1 Litre
  • Dimensions: 625 mm x 540 mm x 640 mm and 850 mm (Total height when platform is positioned at topmost level)
  • Display: Graphic 128 x 64 LCD Display
  • Input: 6 x 3 feather touch membrane keyboard
  • Model No.: VDA ? 6D/8D
  • Power: 230 V, 50 Hz, 2.5 KW (max)
  • Temperature Range: 3 °C above room temperature ? upto 40 °C
  • Temperature Resolution: 0.1( °C )
  • Weight: 45
  • Adjustment: Stirrer depth adjustment: 25mm.
  • Interval time: Test time interval: 1 minute to 23.59 Hours
  • Tank Capacity: 45 Litres (approx)
  • Printer: Parallel Interface for 80 Columns Dot Matrix Printer.
  • Optional Accessories: Accessories for apparatus 5, 6 will be supplied at extra cost
