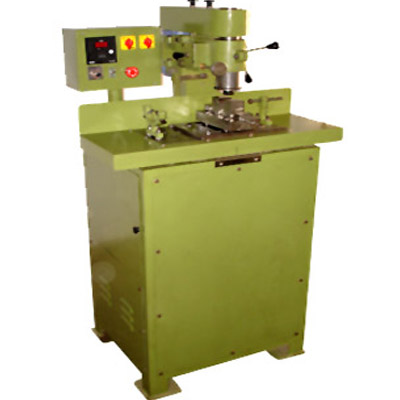

Product Profile of Automatic Key-way Milling Machine
Pioneer Automation provides Automatic Key-way Milling machine that is useful for making key-ways on shafts. This Pioneer Key-way Milling machine is faster in operation than other lathe and conventional milling machines. The Automatic Key-way Milling machine gives precise keyways with high production at low cost. This Automatic Key-way Milling machine is useful for applications in achieving P-9 tolerances for shaft keyways. The Pioneer Automatic Key-way Milling machine is suitable for applications in Electric motor manufacturing companies; Reduction Gearbox Manufacturing companies; Pharmaceutical Die Punch Manufacturing Companies; Other machinery manufacturing companies; and almost all machine tools industry. The Automatic Key-way Milling machine is available with technical specifications like
Model range of model 1 and model 2
Mix. Spindle Speed 3500 rpm; 400 - 3500 rpm
Table Feed 0-0.6 mt./min
Shaft Diameter 9 mm - 55 mm; 9 mm - 100 mm
Maximum Length of Key-way 5 mm - 150 mm; 5 mm - 200 mm
Key-way Size 3 mm - 12 mm; 3 mm - 20 mm
Standard Collet ER - 20; ER - 32
Coolant Pump optional
