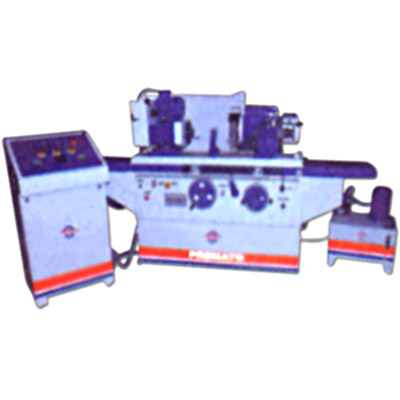

Product Profile of Automatic Universal Coating & Apron Grinding Machine
Precision Machine Tools offers automatic universal coat and apron grinding machine. Technical specifications: onepiece bed made of high-grade cast iron casting provided with strong ribs for rigidity and a large inverted prismatic guide and wide track for the table; centre height - 150 mm to 250 mm; admit between centre - 300 to 2000 mm; work head having high precision clearance adjustable phospohor bronze taper bush bearing having 1 HP AC motor and four speed through step pulley; wheel head having hydrodynamic spherical clearance adjustable white metal bush bearings; Grinding wheel - ? 400` 40` 127 mm; hardened and ground feed screw for perfect repeat accuracy; work head and tail stock morse taper - MT-4; automatic lubrication on main moveable slide by flow control valve; separate hydraulic power pack unit fitted with Rexorth 24V DC valve; separate electrical control penal board having all reputed components; machine is tested as per IS 2368 and operating manual and test chart are provide with the machine; Turcite-B slide way coated on both moveable slides to prevent stick slip motion; and automatic feed by hydraulic drum assembly.
