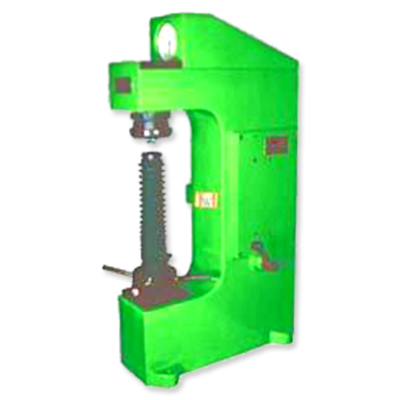

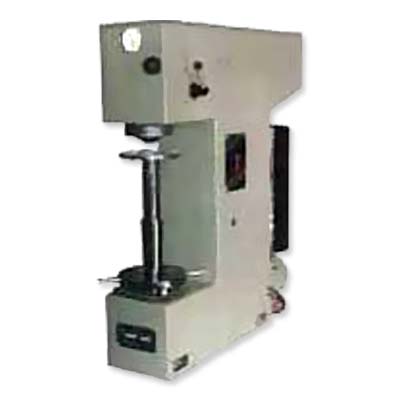

Product Profile of Brinell Hardness Tester
Precision Measuring Instruments offers Brinell hardnes tester, model TH 600, for testing unquenched steels, cast iron, non-ferrous metals, soft bearing-alloys, etc.
The features of the Brinell Hardness Tester are: high testing precision, extensive testing range, automatic load system, high accuracy, wide measuring range, an automatic force loading. The tester conforms to ASTM E-IO, IS06506.2 standard; Specifications: Test force: 1839 N [187.5 kgf 2452 N [250 kgf], 7355 N [750 kgf], 98071 [1000 kgf], 29420 N [3000 kgf]. Indenter ball diameter is 2.5 mm, 5 mm, and 10 mm; Test force dwell time is 699 s adjustable; Testing range is 8650 HBW; Vertical testing space: Max 230 mm [9"]; Horizontal testing space: Max 120 mm [4.7"]; Power supply: 220V/110V, 5060 Hz, 2A; Net weight: 218 kg; Dimension: Max.730 230 x 890 mm.
