Product Profile of Cnc Machine Tools With Fast Indexing Tool Turret

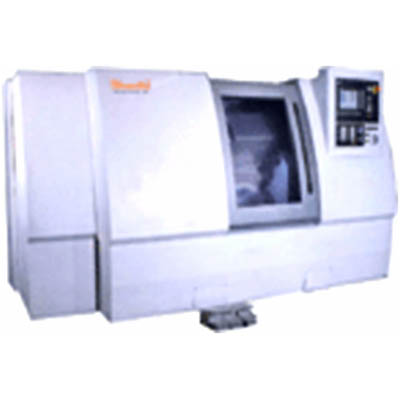

Shanthi Gears Limited is offering CNC Machine Tools with Fast Indexing Tool Turret, model no Speed Turn 165.
Some key features of the CNC Machine Tools with Fast Indexing Tool Turret are such as:
Centralised lubrication
Fast indexing tool turret
Direct drive headstock with poly ` V` drive
Generously dimensioned linear motion guideways for both `X` and `Z` axis
Headstock with hybrid angular contact bearings filled with poly kluber grease for life runs at 8000 rpm
One piece 45deg oriented torque tube structure meehanite casting filled with polycrete for excellent dampening qualities
Working Area of the CNC Machine Tools with Fast Indexing Tool Turret are as foolows:
X-axis travel- 175 mm
Swing over bed- 420 mm
Swing over slide- 200 mm
Z-axis travel- 500 mm/700 mm
Max. turnable diameter- 200 mm
Center Distance- 500 mm/700 mm
Max. workpiece-weight flying- 150 Kg
Max. workpiece-weight between center- 700 Kg
Head Stock of the CNC Machine Tools with Fast Indexing Tool Turret is featuring:
Spindle motor power- 9 Kw
Max. spindle torque- 8 Kgm
Spindle nose DIN 55026- A25"/A26"
Max. chuck outside diameter- 165 mm
Spindle internal bore diameter- 44 mm
Internal diameter front bearing- 90 mm
Spindle speed with constant power- 50 - 8000 rpm
Axis Drives of the CNC Machine Tools with Fast Indexing Tool Turret are featuring:
Z-axis max. feed torque- 6 Nm
X-axis max. feed torque- 6 Nm
X-Z-axis rapid feed- 20 / 20 m/min
Z-axis ball screw diameter- 32 x 10
X-axis ball screw diameter- 32 x 10
Turret specifications of the CNC Machine Tools with Fast Indexing Tool Turret are:
Tool position No.- 8 or 12
External tool section- 30 mm
Indexing time [30deg] - 0.5 sec
Repeatability precision- plusmn3"
Boring bar max. diameter- 30 mm
Max. tangential torque [F1]- 2000 Nm
Max. tilting torque to lift [F3]- 2000 Nm
Max. radial tilting torque [F4]- 2000 Nm
Max. tilting torque to push [F2]- 3000 Nm
Tool attachment VDI [DIN 69880]- 20 x 20 mm
Max. coolant pressure continuous / intermittent.- 7 bar / 14 bar
Tail Stock of the CNC Machine Tools with Fast Indexing Tool Turret features the following:
Quill travel- 80 mm
Max. quill force- 750 Kg
Rapid traverse- 5m / min
Integrated rotating center- MT4
Tailstock quill diameter- 85 mm
Max. distance from spindle nose- 400 mm
Coolant System of the CNC Machine Tools with Fast Indexing Tool Turret comes with:
Coolant power - 0.5 Kw
Tank capacity- 70 Liters
Coolant supply- 20 LPM
Coolant pressure [option] - 7 bar
The CNC Machine Tools with Fast Indexing Tool Turret comes with these dimensions:
Machine weight- 4000 kg
Machine length- 2650 mm
Machine height- 1650 mm
Width for the transport- 1750 mm
Spindle axis height above floor- 1000
