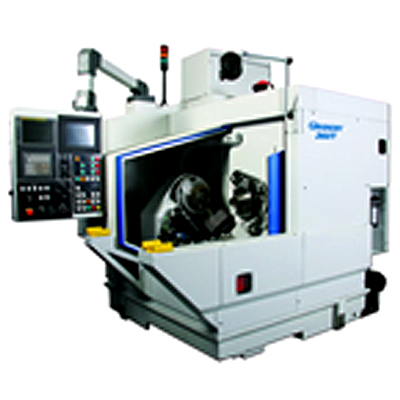

Computer Numerical Controlled Gear Testing Machine

Product Specification of Computer Numerical Controlled Gear Testing Machine

• Floor Space Required: 2100 x 2550 mm(width & length)
• Gear cone range: 65 to 305mm (at shaft of 90&deg)<br>77 to 332mm (at shaft of 70&deg)<br>55 to 310mm(at shaft of 110&deg)
• Gear Drive Speed: 1,500 rpm (Maximum)
• Gear outside Diameter: 450 mm (Maximum)
• Height: 2700 mm (to stack light)
• Pinion Cone: 135 to 350mm(at Shaft of 90&deg;)<br> 145 to 447mm ( at Shaft of 70&deg;)<br>41 to 343mm (at Shaft of 110&deg;)
• Pinion drive speed: 3,000 rpm (Maximum)
• Pinion outside diameter: 340 mm (Maximum)
• Shaft angle: 65 to 185 deg (option)
• Testing Torque Load: 2 to 90 nm
• Weight: 9100 kg
• Models: 360 T
