Product Profile of Cub Turning Centre

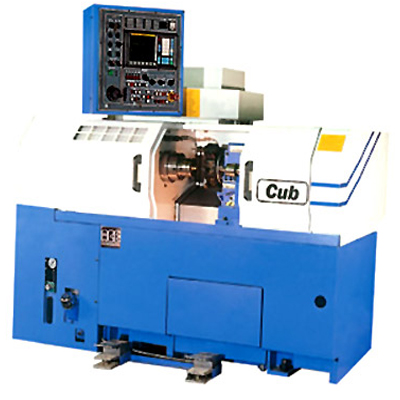

Micromatic Machine Tools offers Ace range CUB Turning Centre that is a CNC Lathe machine. This CUB Turning Centre is useful for applications in turning small components. The CUB Turning Centre comes with rigid bed with V & Flat guide ways on Z-axis, Dovetail guide ways on the X-axis and Cartridge spindles having upto 6000-rpm speed. This CUB Turning Centre is a compact machine suitable for cell manufacturing layout and ensure years of trouble free performance. The company provides CUB Turning Centre with Fanuc CNC system package, digital spindle and axes drives, Fanuc motors ensuring reliability and High-speed bi-directional tool Turret with 8 Stations. The CUB Turning Centre is available with salient features and technical specifications like
Automatic centralized lubrication.
Built in coolant & lighting system
20m/min Rapid rates on both axes X-axis 787.4"/min and Z-axis 787.4"/min
Spindle speeds upto 6000 rpm
Maximum turning diameter 5.5" [140mm]
Spindle Power [15 minutes] 5.5 HP [3.7 kW]
Maximum turning length 7.8" [200mm]
Chuck Size 5" [135mm]
