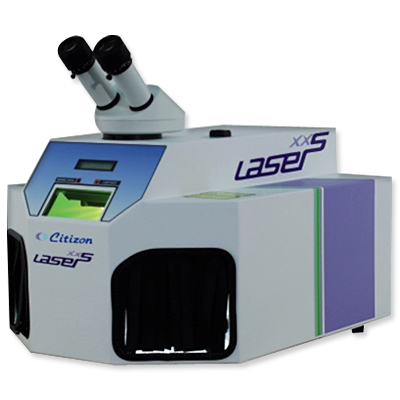

Product Profile of Desktop Laser Spot Welding Machine
Desktop Laser Spot Welding Machine is designed with LCD type display for working parameters power in kW, duration in mS and frequency in Hz of repetition. The Welding Machine is available under the model number XXS - 30J, requires Single-phase, 230 V AC + 10%, 50/ 60 Hz, 10A power for operation. The Welding Machine ensures manual setting of the spot size from 0.3 to 1.5 mm. Desktop Laser Spot Welding Machine is available with cone-shaped nozzle for supplying argon-gas over the welding area placed coaxially to the laser beam aperture.
Citizen Scale [I] Pvt. Ltd is the manufacturer of Desktop Laser Spot Welding Machine. Citizen Scale [I] Pvt. Ltd supplies various types of balances, scales, weigh bridge and system, jewellery instruments, professional digital ultrasonic cleaner, check weigher and detectors, mass comprator, standard calibration weights etc. Citizen Scale [I] Pvt. Ltd is an ISO 9001:2008 awarded company.
Key Features of Desktop Laser Spot Welding Machine
- LCD type display for working parameters power [in kW], duration [in mS] and frequency [in Hz] of repetition.
- Joystick inside the welding chamber to access and change all working parameters.
- Manual setting of the spot size from 0.3 to 1.5 mm.
- Cone-shaped nozzle for supplying Argon-gas over the welding area placed coaxially to the laser beam aperture.
- Dimmer to adjust Halogen-Light intensity inside the welding chamber.
- Nozzle for supplying compressed-air inside the welding chamber.
- Filter for exhausting smokes and particles from the welding chamber.
- Laser pulse frequency can be set up to 3Hz.
- Operated via colour touch screen display.
- Memory cells for stary wording parameter permanently [60/100J].
