Product Profile of Development Board With 0-20mhz Maximum Clock Speed

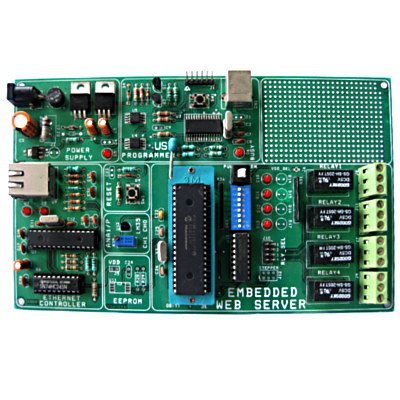

Pantech Solutions Pvt Ltd is one of south-India most distinguished and well-trusted solution provider. Pantech Solutions Pvt Ltd offers PIC-ENC28J60 development Board is developed to embed the PIC microcontroller into internet or intranet. It is well suited for the user to write TCP/UDP application with an 8 bit microcontroller. This enhanced board supports Microchip`s 40-pin PIC micro controllers [16F/18F].
The offers PIC-ENC28J60 development Board contains specifications like; MCU Devices: PIC16F877A/18F452 and Ethernet: ENC28J60 [Microchip], 8 K to 32 K Flash - Program Memory, Clock: 0-20MHz Maximum Clock Speed and 10MHz On-Board, 32.768 KHz for RTC, power: +12V, +5V Fixed Regulator, USB Connector USB 2.0 [Programmer Only] and PBT connector [Relay output].
The On board features of this Evaluation Platform are:
40-Pin ZIF Socket[MCU]
USB2.0 Programmer [ICSP]
8 Nos. Point LEDs
8 Nos. Digital Input[DIP Switch]
Power on-off control
Serial EEPROM [I2C, web pages]
2 Nos. On-board Analog input[LM35, Pot]
4 Nos. of SPDT Relay with termination
Reset Button
