Product Profile of Digital Trainer Kit With 10 Led Output Indication
Kitek Technologies Private Limited is engaged in providing a complete solution for various labs establishment with the wide range of products & services.

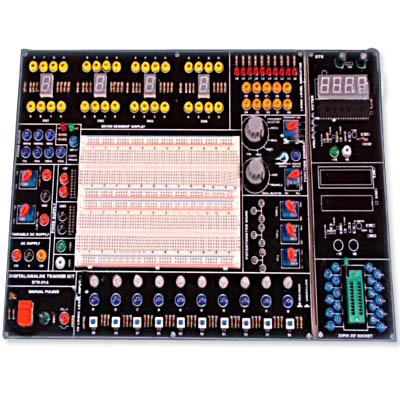

Kitek Technologies offers DTK-01A DIGITAL/ANALOG TRAINER KIT available with specifications like;
Indicators
-10 TTL/CMOS Logic Level Inputs with Dual Color LED indication for logic low and logic high
-10 LED for output indication.
Clock Generator
-Fixed Clock generation of 1Hz, 10Hz, 100Hz, 1 KHz, 10 KHz, and 100 KHz & 1 MHz.
Pulse Generator
-Logic Pulsar provides single pole double throw bounce less pulses of Low to High and High to Low transitions
Logic Probe
-Logic Probe facility provided with LED indicators to indicate Logic High,
-Low & Tri-state
Potentiometers
-Variable potentiometers of 1K, 10K 100K provided on board
Bread Board Area
-Four Distribution Strip of 100 tie points each totaling 400 tie points
-Two Terminal Strip of 630 tie points totaling 1260 tie points
Function Generator [using IC 8038].
-Provides Sine, Square and Triangular output waveforms.
-Frequency variable from 0-200 KHz in FIVE steps.
Display
-Four digit seven-segment LED display.
Power Supplies
Fixed DC Power Supply: +5V, ?12V.
-Variable DC Power supply of +1.2V to +15V & -1.2V to -15V.
-AC Power Supply of 15V-0-15V
Interconnections
-All interconnections are made using 2mm banana Patch cords.
All ICS are mounted on IC Sockets.
Bare board Tested Glass Epoxy SMOBC PCB is used.
Attractive Wooden enclosures of Light weight Australian Pine Wood.
Set of 2mm Patch cords for interconnections
User`s Manual with sample experimental programs
