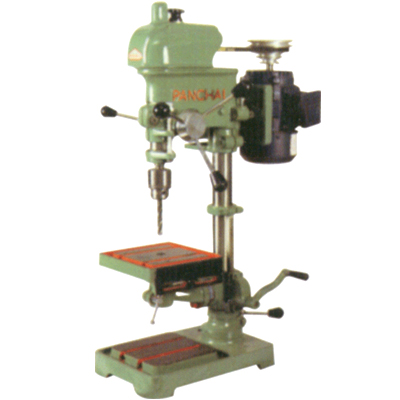

Product Profile of Drilling Machine with Solid Spindle Nose Taper
Panchvati Engineering Works offers Drilling Machine with Solid Spindle Nose Taper. Panchvati Engineering Works manufactures Brand Drilling Machine and Pillar Drilling Machines. The Drilling Machine with Solid Spindle Nose Taper has 13mm Drilling Capacity in Steel. The Drilling Machine is available with 153mm Spindle Centre to column. The Maximum Distance between Spindles to Base is 480mm and Maximum Distance between Spindles to Table is 250mm. The Drilling Machine with Solid Spindle Nose Taper has Spindle Travel of 75mm.
The technical features of Drilling Machine with Solid Spindle Nose Taper are as follows:
Working Surface of Table : 207 X 190 MM
Working surface of Base : 208 X 208 MM
Column Diameter : 47 MM
Base Of Machine : 375 X 235 MM
Overall Dimension of M/C. : 920 X 400 X 300
Motor Speed : 1440 RPM
Motor 3 Phase Induction A.C. : 0.5 H.P.
Weight of Machine [Approx]: 45 Kg.
