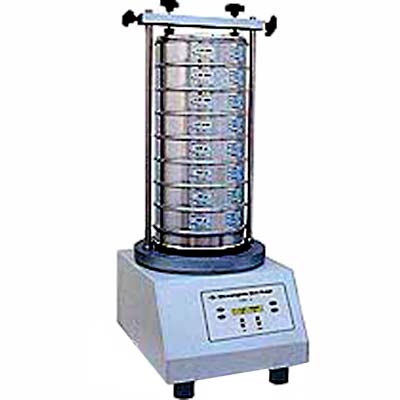

Product Profile of Electromagnetic Sieve Shaker
Shah Brothers provides Electromagnetic Sieve Shaker. The model number of Electromagnetic Sieve Shaker is EMS-8.
Specifications of Electromagnetic Sieve Shaker:
Dry Sieving : Standard
Wet Sieving : Optional Kit
Mode of Operation : Continuous and intermittent [0.5 second ON / 0.5 second OFF]
Sieve Capacity : Up to 8 full-size sieves of 50 m height [ Total load with sieves : 6 kgs]
Timer : Programmable from 1 min to 99 min
Power Level : Programmable power level from 5 to 20[Amplitude level: 0.5mm to 2.00mm - WL]
Display : 16 X 2 character alphanumeric LCD display
Noise level : Less than 61 dB without sieves at maximum power level.
Less than 71 dB with sieves and material at maximum power level.
Sieve Dimension : 200mm Dia X 50mm H [S.S.]
Aperture Sizes : 45?m to 2.0mm
Power : 230 V AC, 50Hz, 600 VA
Dimension [mm] : 339[L] X 312[W] X 270[H] with attached rods 788mm]
Weight : 57Kg without sieves
