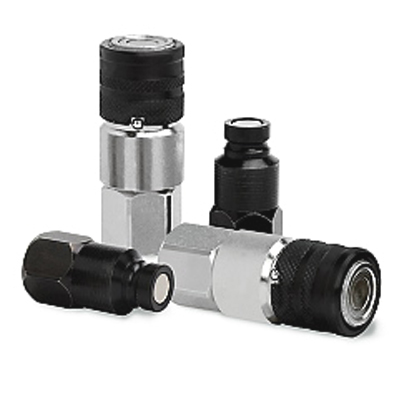

Product Profile of Flat-Face Steel Couplings And Nipples
CEJN Products India Pvt. Ltd. manufactures Flat-Face Steel Couplings and Nipples. CEJN Products India Pvt. Ltd. is an ISO 9001 certified company. The Flat-Face Steel Couplings and Nipples are one-hand operated with extra security locking. The Flat-Face Steel Couplings and Nipples are designed for low- and medium-pressure hydraulic applications. The Flat-Face design minimizes spillage
during connection and disconnection. Series 165 couplings require only one hand for operation, making connection and disconnection fast and easy. Series 165 couplings feature manual security locking as added protection against involuntary disconnection. The couplings and nipples are also available in five other sizes; DN 6.3 [Series 265], DN 10 [Series 365], DN 12.5
[Series 565], DN 16 [Series 665], DN 19 [Series 765].
Technical specifications of Flat-Face Steel Couplings and Nipples are:
Nominal flow diameter: 5.0 mm [3/16"]
Rated flow: 3.6 l/min
Max. working pressure connected: 72.0 MPa
Max. working pressure disconnected: 72.0 MPa
Min. burst pressure connected: 180.0 MPa
Min. burst pressure disconnected: 180.0 MPa
Temperature range: -30 Degree C - +100 Degree C [-22 Degree F - +212 Degree F]
Material coupling: Steel [zinc passivation]
Material nipple: Hardened steel [zinc passivation]
Material seal: Nitrile [NBR], other sealing materials on request
Connect ability: Without pressure
Disconnection under pressure: Not allowed
Rated flow is measured at 0.1 MPa pressure drop.
