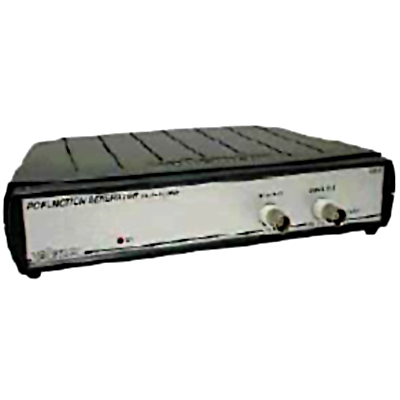

Product Profile of Function Generator With Frequency Range 0.01hz To 1 Mhz
VPL Infotech & Consultant creates various electrical products like; Biomedical Instrumentation, Communication Lab, Data Acquisition System, and many more. VPL Infotech & Consultant offers Function Generator available with Frequency range from 0.01Hz to 1 MHz, Crystal-based stability, Optically isolated from the PC, Low sine wave distortion, TTL level synchronization output, Stores up to 32K of waveform points, Standard waveforms: Sine, Square, and Triangle, Predefined library waveforms included: Noise, Sweep and Extended bode plot option together with PC scope.
The main technical specifications of the Function Generator are:
Power supply: Standard 12V DC adapter, 800mA [PS1208].
Direct Digital wave synthesis [DDS], 32K wave table.
Frequency setting resolution: 0.01%.
Amplitude range: 100mVpp to 10Vpp @ 600 Ohm load.
Amplitude resolution: 0.4% of full scale.
Offset: from 0 to -5V or +5V max. [Resolution 0.4% of full scale].
Vertical resolution: 8 bits [0.4% of full scale].
Maximum sample rate: 32MHz.
Typical sine wave distortion [THD]: < 0.08% [with 0dB and
