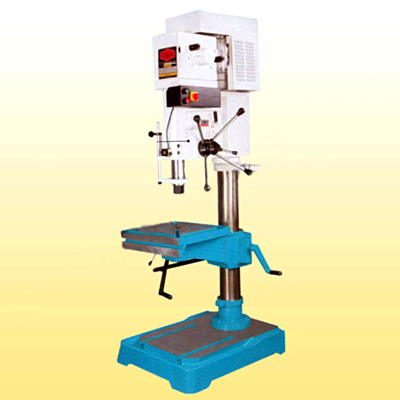

Product Profile of Geared Heavy Duty Drilling Machine
Geared Heavy Duty Drilling Machine can be operated by 2 HP / 3 HP motor. The Drilling Machine is provided with 400mm standard capacity range. Geared Heavy Duty Drilling Machine is manufactured by India International Marketing Company.
India International Marketing Company supplies diverse types of bending machines, power press machines, heavy duty milling machines, heavy duty drilling machines, lathe machines, and radial drill machines. The Geared Heavy Duty Drilling Machine of model number P40AA, is provided with auto feed gear box and two warm gear box.
Geared Heavy Duty Drilling Machine has the following technical specifications:
Drilling Capacity in M.S: 40.
Drilling Capacity in C.I: 45.
Rough Boring in M.S.: 75.
Tapping in M.S.: 25.
Spindle Hole Taper: MT-4.
Spindle Travel: 250.
Spindle Speeds [RPM X Steps]: 88-1404 X 9.
Diameter of RAM: 78.
Auto feed Range [mm/rev.]: 0.05 & 0.09.
Max. Dist Spindle Nose to Table: 530.
Spindle centre to column: 345.
