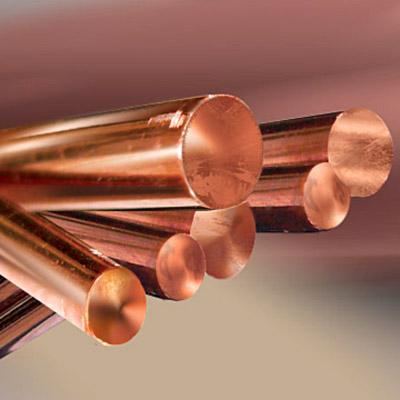

Product Profile of High Conductivity Copper Rods
Nissan Copper Ltd. is an ISO 9001:2000 certified company which manufactures High Conductivity Copper Rods. These High Conductivity Copper Rods finds application in the Electrical Conductors, Switches, Terminals, Radiators, Cotter Pins, Nails Rivets, etc. which requires high electrical and thermal conductivity. The specifications of the High Conductivity Copper Rods are as per the B.S. 2874/69 C101 near Equivalent specification I.S. 613/64. The Technical specifications are as follows
Chemical Requirement:
Copper [Inc. Silver] 99.9 % min.
Total Impurities [Excl. Silver & Oxygen] 0.03% Max.
Physical Properties Half Hard:
Condition Tensile Strength Kg/mm? Min % elongation on 5.65 ?A Min
10-12 26.5 12
12-25 25.5 18
Over 25 23.5 22
Electrical Conductivity at 20? [Annealed] 99.25% I.A.C.S.
