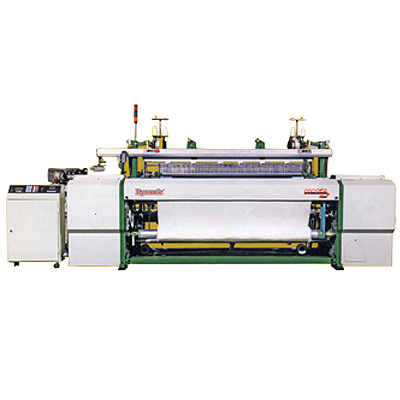

Product Profile of High Speed Rapier Loom Machine
The High Speed rapier Loom Machine is used in textile industries. Dynamic Looms Manufacturing Company manufactures High Speed rapier Loom Machine. Dynamic Looms Manufacturing Company is an ISO 9001:2000 company that offers different types of textile machinery. The High Speed rapier Loom Machine of model name Magic is a micro controller based embedded system that can also show production data.
Technical Specifications of High Speed rapier Loom Machine is
Model : Mgic 300
Working width : 170cm, 190cm,& 230cm
Working reduction: 170cm, 190cm, & 230cm
Width reduction : Up to 400mm
Shuttle Size: 16" , 17", 18", 18 "
Weft colours: Up to colour operated by microprocessor based controller
Take-up : Continuous , pick density 10 to 128 picks per inch
Warp Control: up to 6 colours operated by microprocessor based controller
Shedding motion: Cam shedding suitable for plain, Twill, Drill and sateed weave
Warp let off: Negative or semi positive
Cloth roll: Up to 400mm Dia.
Leno selvedge: Independent leno selvedge.
Applicable yarns: Natural, Synthetic and blended cotton 2s-100s, Filament-20Dn-2000dn pure silk -20Dn-500Dn
