Product Profile of High Stability Decade Megohm Box

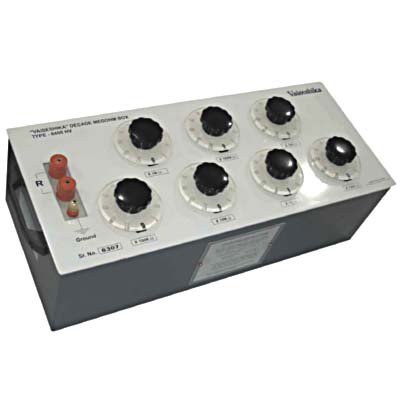

Vaiseshika Electron Devices manufactures High Stability Decade Megohm Box. Vaiseshika Electron Devices Quality Management System is ISO 9001:2000 compliant. The High Stability Decade Megohm Box, Type: 8400 /8400 HV has been designed and fabricated to provide calibration standards for Meggers, Insulation Testers, Insulation Bridges, Megohm Meters, Digital Meters and components comparison. This Decade Megohm Box has resistance range from 0.1 Megohm to 1000 Gigaohm [1 Tera].
There are two models of this instrument: 8400 & 8400 HV
Model 8400 is economy model having resistance range 0.1 megaohm to 1000.0 Gigaohm with working voltage up to 1000 Volts DC.
Model 8400 HV is designed for high voltage working up to 1000 Gigaohm [1 Tera] with working voltage from 1000 Volts to 5000 volts DC.
Key Features of High Stability Decade Megohm Box
- Good engineering characteristics
- Portable in metallic cabinet
- Resistance calibration standards
- Highly stable & sturdy switches
- Built in state of the art system to minimize effect of humidity at high voltage measurements
- Repeatable results
- Very high grade ceramic resistors employed
