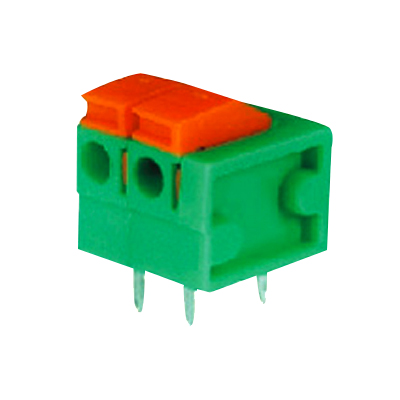

Product Profile of Horizontal Wire Entry PCB Terminal Block
Vital Electrocomp supplies Horizontal Wire Entry PCB Terminal Block. Vital Electrocomp is an ISO 9001:2000 recognized company. Vital Electrocomp offers various types of pluggable pcb terminal blocks, fuse holders etc. Horizontal Wire Entry PCB Terminal Block is available in 5 mm and 5.08 mm X 7.62 mm pitch.
Technical Specifications of Horizontal Wire Entry PCB Terminal Block are:
Current Rating: 10A
Voltage Rating: 250V
Insulation Resistance: 1000Mohm min at 500V DC
Dielectric Strength: greater than 2 KV
Molded material: Polyamide 6,6
Terminal: Tin Plated Brass
Pitch: 5.00mm X 7.62mm or 5.08mm X 7.62mm
Wire Size: 2.5mm2 max.
Spring :Stainless steel
