Product Profile of Inline Ultra High Shear Dispersing Machine
Inline Ultra High Shear Dispersing Machine is used to achieve the finest micro-emulsions and suspensions. Extremely high shear rates [up to 190,000 s-1] combined with a fine generator geometry enable crushing of droplets and solids particles down to the nanoscale. IKA India Private Limited manufactures Inline Ultra High Shear Dispersing Machine.

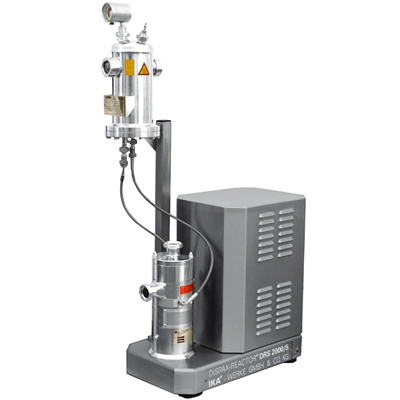

IKA India Private Limited offers a wide range of laboratory equipments, process technology and analytical equipments for mixing, heating, distilling and crushing applications. Inline Ultra High Shear Dispersing Machine is usually equipped with a two-stage rotor-stator system [generators]. The high tip speed of 40 m/s [10,000 fpm] often negates the need for a third stage. The high shear dispersing machine DISPAX REACTOR® DRS 2000 is available in five sizes. The possible throughput [H2O] varies from 700 to 40,000 l/h. All machine sizes work with the same circumferential speed of the rotor which provides for a reliable scale-up. The equipment is available under Dispax-Reactor DRS model.
Some advantages of Inline Ultra High Shear Dispersing Machine:
Simple, yet robust design, which is synonymous with long service life
Explosion protected execution according to ATEX 95 guidelines deliverable
3A-Sanitary conformed and certified
Easy scale-up of processes
High-value seal with wear-resistant materials
High quality surface finishes
Machine is self-draining and CIP resp. SIP capable
All wetted parts are made of 316L stainless steel
Capable of operating under pressures of up to 16 bar
Special materials and finishes are available upon request
Low noise level
