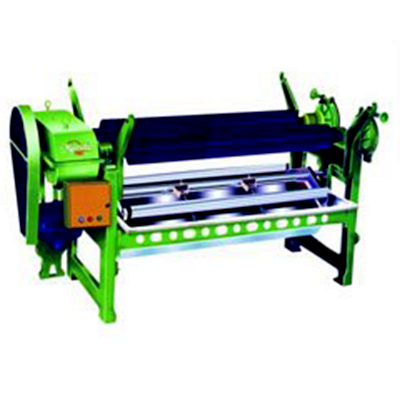

Product Profile of Large Size Dyeing Jigger
Large Size Dyeing Jigger is designed with a draw roll of 190mm and 305mm diameter. The Dyeing Jigger is available with fabric capacity of 120Kgs and 350Kgs. The Dyeing Jigger is provided with guide roll of maximum diameter of sizes 76 mm and 88mm. The Large Size Dyeing Jigger comes equipped with brake drum of diameter 254 mm and 305mm.
Technical specifications of the Large Size Dyeing Jigger:
Draw roll diameter: 190mm and 305mm.
Capacity fabric is 120Kgs, 350Kgs respectively.
Full Fabric Diameter 609 mm and 1016 mm.
Guide Roll Diameter: 76 mm and 88mm.
Electric Motor: 3.0 HP has 960 Rpm and for 5.0HP at 960Rpm.
Brake Drum diameter: 254mm and 305mm.
