Product Profile of Lcxt-16 Turning Centre

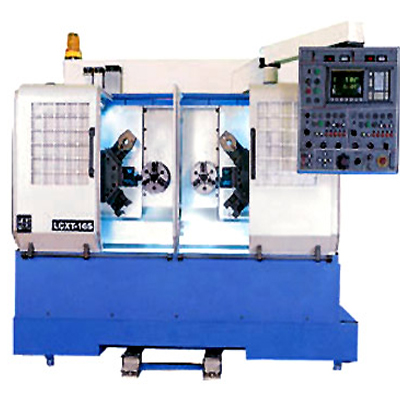

Micromatic Machine Tools offers Ace LCXT-16 Turning Centre that is a Twin Spindle CNC Chucker. This LCXT-16 twin spindle CNC Chucker is suitable for disc type components to turn out finished part in every cycle and eliminate in-process inventory. The LCXT-16 machine is equipped with two spindles beside one another for applications to do identical operations, sequential operations or different operations. The company supplies this LCXT-16 twin spindle CNC Chucker with Fanuc package CNC system, digital spindle and axes drives, and Fanuc motors to ensure reliability. The Ace LCXT-16 Twin Spindle CNC Chucker comes with salient features and technical specifications such as
2 Rigid high-speed bi-directional tool turrets provided with 8 tools each.
2 Spindles side by side attached.
Automatic centralized lubrication attachment provided.
Straight drop down chip and coolant disposal
Built in coolant & lighting system
Optional tooled up solutions.
Maximum turning diameter 12" [330mm]
Spindle Power [30 minutes] 10 HP [7.5 kW]
Maximum turning length 7.6" [200mm]
Rapid Rate: X-axis 590.6"/min [15m/min] and Z-axis 590.6"/min [15m/min]
Chuck Size 6/8" [165/200mm]
