Product Profile of Load Cells

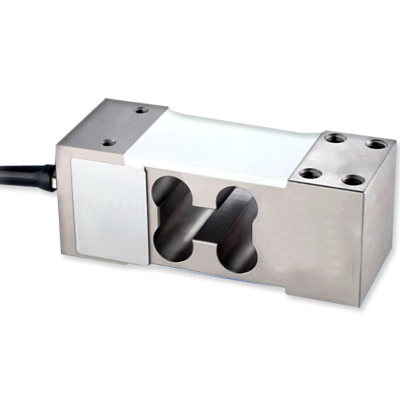

PERK offer Regular Platform Load Cells under the model number ADI60810 that`s used in precision, single point platform scales. Perk Mercantile Pvt. Ltd also offers products like load cells, weighing machines, hardness testers, weigh bridge, transducers etc. Regular Platform Load Cells has a dimension of 200 x 50 x 40mm, with Hole Center 25 x 35mm and is ideal for precision, single point, platform scale application. The Regular Platform Load Cells is a strain gauge based, low profile bending beam load cell that has a platform size of 1X1 meter. The Regular Platform Load Cells have a Large Platform Size and are constructed from tool steel for heavy sock load bearing capacity.
Product Specification of Load Cells
  • Excitation Voltage: 10 VDC - Maximum 15 VDC
  • Input Resistance: 400 ±15 ohm
  • Nominal Output: 2.0 mV/V
  • Output Resistance: 350 ±5 ohm
  • Platter Size: 1000
  • Standard Capacity: 500, 750, 1000, 1500, 2000, 3000
  • Tightening Torque: 1.5 m.kg
