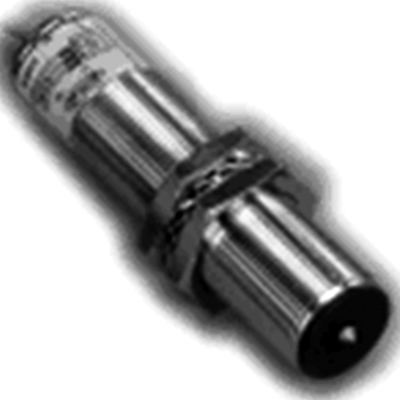

Product Profile of M18 Digital Magnetic Pick-up Sensor With 2.5mm Flush
Katlax Enterprises Pvt. Ltd offers M18 Digital Magnetic Pick-Up Sensor with 2.5mm Flush. Katlax Enterprises Pvt. Ltd is an ISO 9001: 2000 certified company.
The specifications of M18 Digital Magnetic Pick-Up Sensor with 2.5mm Flush is:
Mounting In Metal Flush
Sensing Distance = 2.5mm
Switching Frequency Range 0 - 10 KHz
Temperature Range: -25 to+75 Degree C
Temperature Drift: less than 10 percent
Operating Voltage 5 V TO 30 VDC
Supply Current: less than10 mA
Max Switching Current : less than100mA
Voltage Drop: 2V DC at max. load current
This field plate sensor is particularly effective for trouble free measuring of rotating objects.
