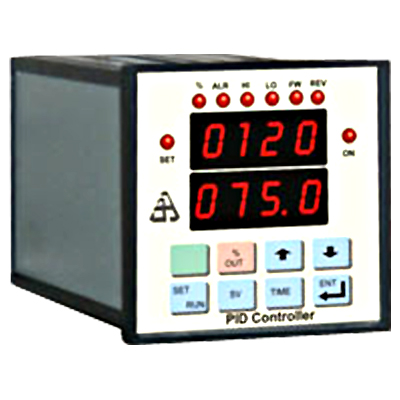

Product Profile of Microcontroller Based Pid Temperature Controller
Microcontroller Based PID Temperature Controller is provided with dust proof membrane keypad for programming purpose. The PID Temperature Controller is offered with microcontroller based digital circuitry four digit light emitting diode display for parameter indication. The Temperature Controller of IM2700 Series is available with control algorithm as on or off, proportional, PI or PID to choose from depending on process requirement. Microcontroller Based PID Temperature Controller comes in 96 X 96 X150 mm dimension range and can be availed with independent heat and cool relay outputs.
Ajinkya Electronic Systems manufactures Microcontroller Based PID Temperature Controller. Ajinkya Electronic Systems offers wide range of microprocessor based systems for industrial controls such as AC timer, ampere hour meter, data logger, DC wattmeter, display systems, drink dispensing counter, event logger, flow meter, humidity controller, jigger controller, load / weighing indicator and multichannel temperature controller. Ajinkya Electronic Systems is an ISO 9001 awarded company.
Key Features of Microcontroller Based Pid Temperature Controller
- Microcontroller based digital circuitry four digit LED display for parameter indication.
- Dust proof membrane keypad for programming.
- Input interface: Pt 100 or Thermocouple or 4 t0 20 mA as per the requirement.
- Control algorithm On/Off, P, PI or PID with programmable control constants.
- NV RAM storage to retain set point in case of power failure.
- Control output and Relay outputs rated 230V / 5A [resistive] or 4-20 mA.
- Size 96 X 96 X150 mm. [DIN standard].
- Optional 4 digit display for set point display.
- 4-20 mA or 0-10 V Control output optional.
- High low relay alarm outputs optional.
- Independent Heat and Cool relay outputs optional.
- RS 232 Serial Interface for PC or Serial Printer [Optional].
