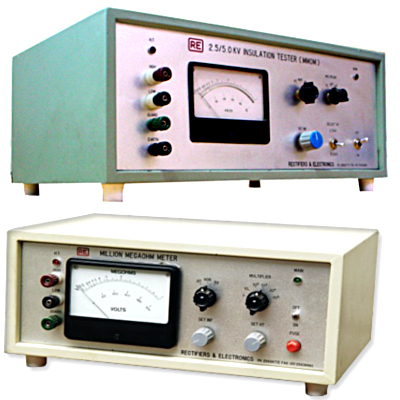

Million Mega Ohm Meter With Solid State Circuit

Product Category : Ohm Meters
Follow Category

Supplier : Rectifiers & Electronics

Key Features of Million Mega Ohm Meter With Solid State Circuit
  • Input Voltage: 230 + 10percent Single Phase 50Hz Ac
  • Output Voltage [any one or more]: 100V, 250V, 500V, 1000V, 2500V, 5000V, DC.
  • Output current: 3 mA [up to 5mA]
  • Range of Measurement: 1 Megohm to 10 Megohm [As per requirement]
  • Test Voltage Selection: Through Selector Switch
  • Accuracy Class: +/- 2percent of reading, + 0.5 percent of FSD
Enquire now
Product Profile of Million Mega Ohm Meter With Solid State Circuit
Rectifiers & Electronics offers Million Mega Ohm Meter with Solid State Circuit. Rectifiers & Electronics is an ISO 9001:2000 certified company. The Million Mega Ohm Meter with Solid State Circuit is used to measure insulation resistance of insulating materials, Cables, Electrical & Electronic Components, Panels, Transformers, PCB`s, chokes, Plugs & Sockets, etc. It can also be used to test wires and cables checking the high charging current of capacitive loads. This ohm meter has built in arrangement used to charge the capacitor and to indicate the value of insulation after preset time. This easy to operate Ohm Meter is suitable for all types of insulation material.

Key Features of Million Mega Ohm Meter With Solid State Circuit
  • Input Voltage: 230 + 10percent Single Phase 50Hz Ac
  • Output Voltage [any one or more]: 100V, 250V, 500V, 1000V, 2500V, 5000V, DC.
  • Output current: 3 mA [up to 5mA]
  • Range of Measurement: 1 Megohm to 10 Megohm [As per requirement]
  • Test Voltage Selection: Through Selector Switch
  • Accuracy Class: +/- 2percent of reading, + 0.5 percent of FSD
