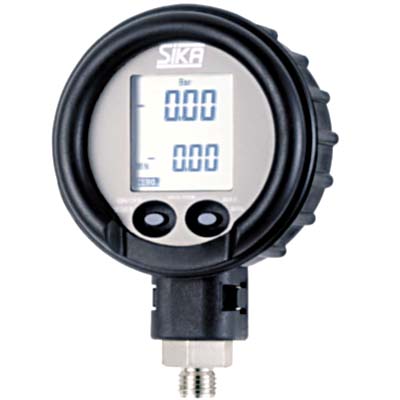

Product Profile of Pressure Reference Gauge [digital]
Vaiseshika Electron Devices supplies Pressure Reference Gauge [Digital]. Vaiseshika Electron Devices Quality Management System is ISO 9001:2000 compliant. The Pressure Reference Gauge [Digital] of Type E is a digital reference test gauge, with pressure medium: fluids and gas media and pressure connection: G 1/4inch male threads. Pressure Reference Gauge [Digital] includes multi-purpose LCD display, 30 x 30 mm, function keys: `Select` [reset, off, zero, cont] `Min/Max`, casing: D=70, W=100, H=30mm, IP65 and weight: approx. 130 gm.
Other specifications of Pressure Reference Gauge [Digital] are:
Power supply: 3 V battery 1400 h service life under continuous operation, Low-Battery display, Auto-Off
Accuracy: +/-0.5% FS +/- 1 digit
Measurement range / resolution:
Model A: -1.... [30] 40 bar / 0.01
Model B: 0.... [300] 350 bar / 0.1
Extra charge: EEx ia IIC T5/T6 - 01ATEX6001X
