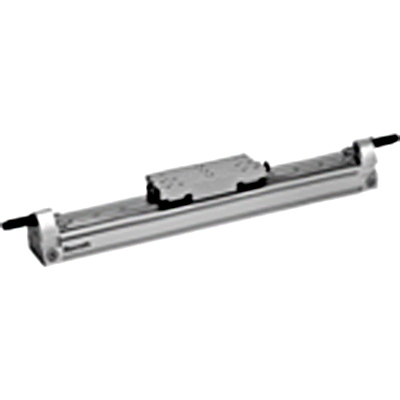

Product Profile of Rodless Cylinder With Ball Rail Guide & Easy-2-combine Capability
Rexroth is a Drive & Control Company offering drive and control technologies, both specialised and integrated. Rexroth is a wholly-owned subsidiary of Robert Bosch GmbH. The Pneumatics Division from Rexroth offers the Rodless Cylinders. The Rodless Cylinder is a Piston Rod Cylinder which belongs to the RTC-CG series and has the following unique features:
Rodless Cylinder with 16 to 80mm Diameter
Cylinder is double-acting with magnetic piston & ball rail guide
Compact guide with easy-2-combine capable
Pneumatic, adjustable cushioning
Minimum Working pressure is 2bar & maximum is 8bar
Ambient & medium temperature lies between -10Deg.C and +60Deg.C
Compressed air medium
5 mu is the maximum particle size
Oil content of compressed air lies between 0 mg/m cube to 1 mg/m cube
Pressure for determining piston forces is 6.3bar
Aluminum, anodised cylinder tube, ball rail table & covers
Polyurethane Seal
stainless steel, polyurethane Sealing strips
Steel, hardened Guide rail
