Product Profile of Round Cylinder With Rear Eye & Spherical Bearing
Rexroth is a Drive & Control Company offering drive and control technologies, both specialised and integrated. Rexroth is a wholly-owned subsidiary of Robert Bosch GmbH. The Pneumatics Division from Rexroth offers the Piston Rod Cylinders. The Round Cylinder belongs to the ICS-D1-MP5 Series. It has the following distinct features:
Round Cylinder with 32 to 100mm Diameter
Cylinder is double-acting, with magnetic piston
Pneumatic adjustable cushioning
Round Cylinder is acid proof with rear eye & spherical bearing
Minimum Working pressure is 1bar & maximum is 10bar
Ambient & Medium temperature lies between -25Deg.C and +70Deg.C
Compressed air medium
50 ?m maximum particle size
Oil content of compressed air lies between 0 mg/m cube to 1 mg/m cube
Pressure for determining piston forces is 6.3 bar
Stainless steel, acid-proof cylinder tube, Piston rod
Stainless steel, acid-proof front & end covers
Acrylonitrile Butadiene Rubber seal
Stainless steel, acid-proof Nut for piston rod
Polyethylene Scraper

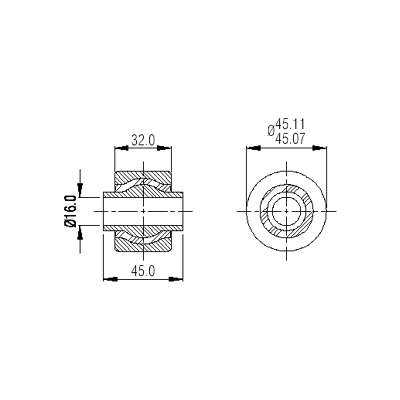

Stainless steel, acid-proof Spherical bearing
