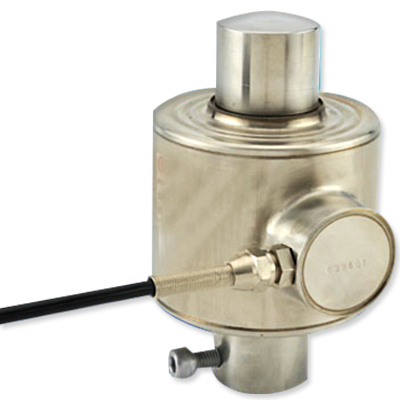

Single Column Compression Load Cell

Product Profile of Single Column Compression Load Cell
PERK offers Single Column Compression Load Cell under model number ADI 90410 which is a rocker type load cell in standard capacities ranging from 10 to 100 Tf. Perk Mercantile Pvt. Ltd also offers products like load cells, weighing machines, hardness testers, weigh bridge, transducers etc. Single Column Compression Load Cell is a strain gauge based load cell that is fully temperature compensated. The Single Column Compression Load Cell is self restoring, very easy to install and is provided with voltage surge protection. The Single Column Compression Load Cell is linearized with accuracy of 0.025% of full scale deflection [FSD].
Product Specification of Single Column Compression Load Cell
  • Excitation Voltage: 15 VDC - Maximum 20 VDC
  • Input Resistance: 770 ±5.0 ohm
  • Nominal Output: 2.0 mV/V
  • Output Resistance: 700 ±3.0 ohm
  • Standard Capacity: 10, 20, 30, 40, 50, 60, 75, 100 (Tf)
  • Zero Balance: ± 1.0 % FSO
