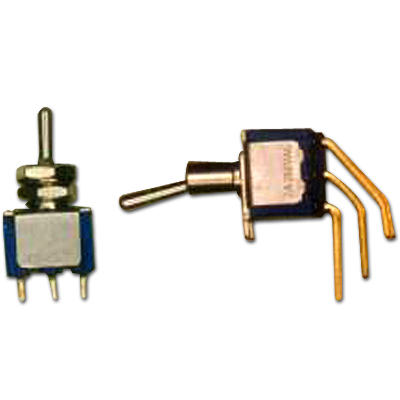

Single/ Four Pole Toggle Switch

Product Profile of Single/ Four Pole Toggle Switch
Integral Systems & Components Pvt. Ltd supplies Single/ Four Pole Toggle Switch. Integral Systems & Components Pvt. Ltd is an ISO 9001: 2000 recognised company manufacturing a wide range of electronic communication and control equipments like Electronic Switches, Warning Lights and Micro Switches. The Single/ Four Pole Toggle Switch is available with popular actuator types and sizes suitable for all the required switching functions. The Single/ Four Pole Toggle Switch high current carrying switch in small volume that comes with Solder type contacts for soldering to wires.

Applications of the Single/ Four Pole Toggle Switch:
  • Electronic circuitry
  • Relays
  • Motors
  • Low Signal Switching
  • Product Specification of Single/ Four Pole Toggle Switch
    • Contact rating: 3 Amps @ 250 V AC ; 5A @ 28 V DC
    • Electrical Life: 100,000 make-and break cycles at full load on all Models ending in -1 (ON-NONE-ON)
    • Dielectric Strength: 1000 VRMS min.@ sea level
    • Operating Temperature: -300 deg. C. to 850 deg. C.
    • Insulation Resistance: 1000 Megohms min.
    • Contact Resistance: Below 10 milliohms initial @ 2.4 V DC 100 mA for both silver and gold plated contacts.
