Product Profile of Single Phase Distribution Transformers

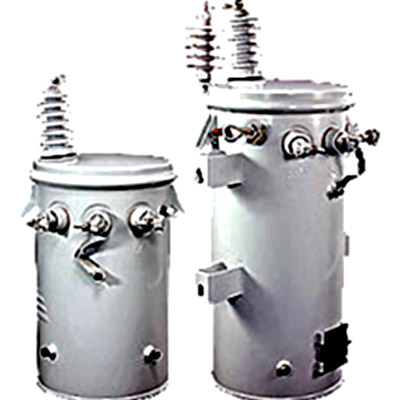

Vijai`s Single Phase Oil Filled Distribution Transformers are designed to effectively improve the quality and reliability of the electrical distribution system. Vijai specializes in the manufacture of Pole type Silicon Steel and Amorphous Metal transformers.
Features and Benefits
Robust construction having excellent short circuit and thermal withstand capabilities.
Proven technology, effectively improving the quality and reliability of the electrical distribution system.
Computer Aided Design [CAD] and Vijai`s Design Software Systems
Ability to meet customized design and specification demands
18 months standard warranty
After sales maintenance and spare parts service
Round Tank for aesthetic appearance
Powder Coated Tank Body - Excellent finish [Optional]
Standard Fittings
Pole Mounting Brackets
Lifting Lugs
Pressure Relief Device / Self Venting Top Cover
Tank Grounding Provision
Rating and Diagram Plate
Primary Bushings & Secondary Bushings as per customer requirement
Optional Fittings
Lighting Arrester / Arcing Horns
High Voltage Neutral Bushing
Terminal Connectors
Tap changer for external operation as per requirement
Technical Specification
Ratings: CRGO Silicon Steel Transformers: Up to 167 kVA
Amorphous Metal Transformers: Up to 167 kVA
Applicable Standards: IS, IEC, ANSI, JIS, etc.
Cooling: ONAN, OA
Insulating Fluid: Mineral Oil to specification
Frequency: 50 Hz, 60 Hz
Polarity: As specified
Primary Voltage: Up to 33 kV Class
Secondary Voltage: 120, 120/240, 210-105, 250,240/480 V
[Other voltages as required]
Winding Material: Copper/Aluminium
Tapping Range: ?5% in steps of 2.5%
[Other tappings as required]
Impedance: In line with applicable standards
