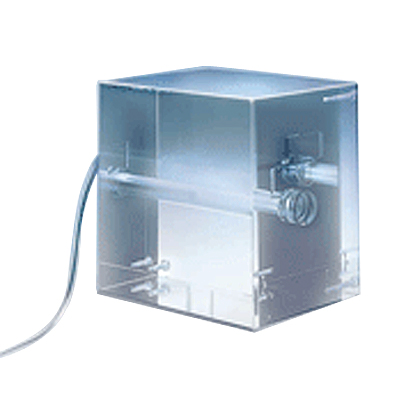

Product Profile of Solid Standard Calibration Phantom
Rosalina Instruments manufactures Solid Standard Calibration Phantom. Rosalina Instruments offers various types of single - sample osmometer, milk cryoscopes, radiation detectors, block cutting devices, x-ray meter etc. Solid Standard Calibration Phantom is designed for constancy checks as well as for comparison measurements of ionization chambers. Solid Standard Calibration Phantom consists of a PMMA block which has a hole from one side to the other side of the phantom used to insert various ionization chamber adapters. Thimble chambers can be placed in measuring depths of 50 mm, 70 mm or 100 mm. Two adapters can be inserted tip to tip without air gap for simultaneous irradiation of chambers.
Solid Standard Calibration Phantom has the following features:
Is designed for constancy checks as well as for comparison measurements of ionization chambers.
Consists of a PMMA block which has a hole from one side to the other side of the phantom used to insert various ionization chamber adapters.
Depending on the orientation of the phantom, thimble chambers can be placed in measuring depths of 50 mm, 70 mm or 100 mm.
Two adapters can be inserted tip to tip without air gap for simultaneous irradiation of chambers.
Technical Specifications of Solid Standard Calibration Phantom are:
Density: 1.18 g/ cube cm
Measuring depth : 50, 70, 100 mm
Energy range:60Co X-rays up to 50 MV
Exterior dimensions [LXWXH]:20 X 20 X 20 cube cm
Additional Plate:20 X 20 X 3 cube cm
Weight:7 kg
