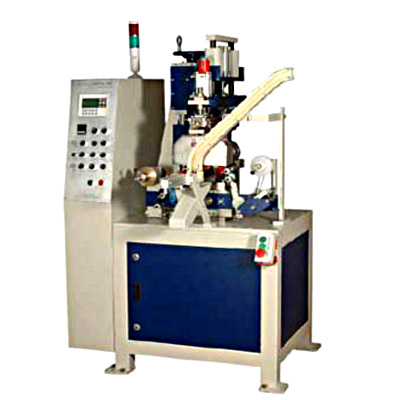

Product Profile of Stm-150-cs,oval, Round And Square Cap Stamping
TECHNOSHELL offers STM-150-CS,OVAL, ROUND AND SQUARE CAP STAMPING.
FEATURES
-Specially designed to print line on a cap
-High Speed operation of more than 3000 strokes/hr
-Rigid construction
-Complete automation with bowl feeder available
-High Speed PLC controlled
-Speed control for stamping speed and foil winding
-Auto loading and Ejection by pneumatic cylinders
SPECIFICATIONS
-Max Size:Diameter 100 mm
-Oval Ratio: 2:1 [Max Dia : Min Dia]
-Length of stamping:50 mm Max
-Speed of stamping:3000 strokes/hr [for 0 30 caps]
-Size of Machine:950 mm x 1050 x 1800mm
-Air Supply : 6 kg/cm2
-Air Consumption:0.25 m3 / hr
-Power: 230 VAC, 50Hz, 250Kwatts
-Minimum foil width : 5 mm
-Weight:300 kgs. approx
