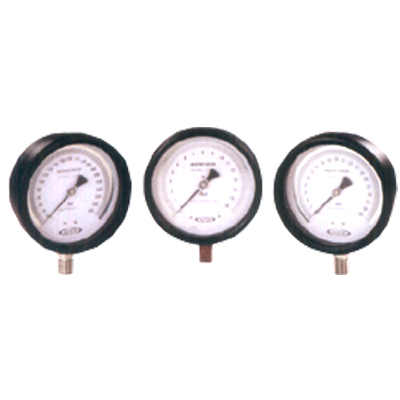

Test And Master Pressure Gauges

Product Category : Master Gauges

Follow Product

Key Features of Test And Master Pressure Gauges

Designed for use as a reference gauge for recalibrating general service gauges, transmitters and other pressure operated instruments
These gauges are easy to carry for field use and for spot inspections
To make reading easier and faster each pressure gauge is provided with readable dial
Reading error caused by parallax is eliminated by aligning the knife edge tip pointer with its reflection in the mirror band on the gauge
Facilitated with a dial of 150mm and 250mm size range
Featured with tinted green or off white anti-slave acrylic type, toughened or laminated type glass

Enquire now

Product Profile of Test And Master Pressure Gauges

Test and Master Pressure Gauges are designed for use as a reference gauge for recalibrating general service gauges, transmitters and other pressure operated instruments. These Pressure Gauges are easy to carry for field use and for spot inspections. These Pressure Gauges are provided with readable dial to make reading easy and fast. Test and Master Pressure Gauges are facilitated with a dial of 150mm and 250mm size range and are featured with tinted green or off white anti-slave acrylic type, toughened or laminated type glass.

Powertech Industries is the manufacturer of Test and Master Pressure Gauges. Powertech Industries is the supplier of pressure and temperature gauges like pressure gauges, diaphragm seals, mercury filled temperature gauges, thermowell sensor as well as bi-metal gauges, differential gauges, hygienic gauges etc.

Key Features of Test And Master Pressure Gauges

Designed for use as a reference gauge for recalibrating general service gauges, transmitters and other pressure operated instruments
These gauges are easy to carry for field use and for spot inspections
To make reading easier and faster each pressure gauge is provided with readable dial
Reading error caused by parallax is eliminated by aligning the knife edge tip pointer with its reflection in the mirror band on the gauge
Facilitated with a dial of 150mm and 250mm size range
Featured with tinted green or off white anti-slave acrylic type, toughened or laminated type glass

Product Specification of Test And Master Pressure Gauges

Accuracy: Test gauge: +0.5% of f.s.d. ; Master gauge : 10.25% of f.s.d.
Case: Case & Bezel : Die cast Aluminium Weatherproof housing, with screwed outer bezel, Stoved enamel black finish. S.S.304 snap action bayonet type.
Connection: 1/2"NPT(M)/BSP(M).
Dial: Anti Paralax Mirrored Scale.
Dial Size: 150mm & 250mm.
Element Material: Test gauge: Phosphor Bronze/SS 316 ; Master gauge : Beryllium Copper.
Elements: Bellow, bourdon tube.
Glass: Tinted green or offwhite antislave acrylic type, Toughened or Laminated type.
Joints: Silver brazed / Argon arc welded.
Least Count: As per standard accuracy chart for + 0.5% and 10.25%.
Mounting: Direct with bottom entry / Back with Panel Mounting with clamps.
Pointer: Knife edged, Micrometer zero adjustable type.
Range: 0-1000 mmWc to 0 -10,000 mmWc -760 mmHg to 0 ; 0 -1Kg/sq.cm. to 0 -1000 Kg/sq.cm.
Socket Material: Brass/AISI 316 SS.

Test And Master Pressure Gauges

Product Category : Master Gauges

Key Features of Test And Master Pressure Gauges

Product Profile of Test And Master Pressure Gauges

Key Features of Test And Master Pressure Gauges

Product Specification of Test And Master Pressure Gauges

Recently updated products in Master Gauges

Test And Master Pressure Gauges

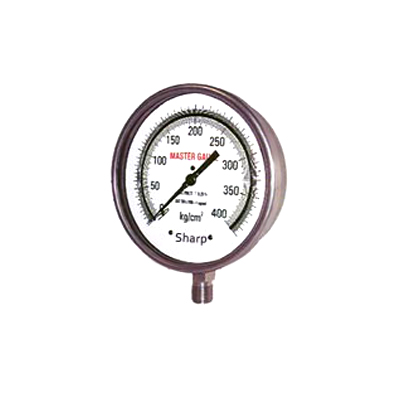

Gauge With Anti-Parallax Error Dial

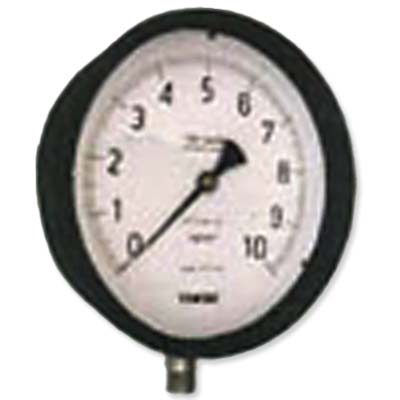

Direct Bottom Mounted Master Gauge

Test & Master Gauge for Gaseous & Liquid Media

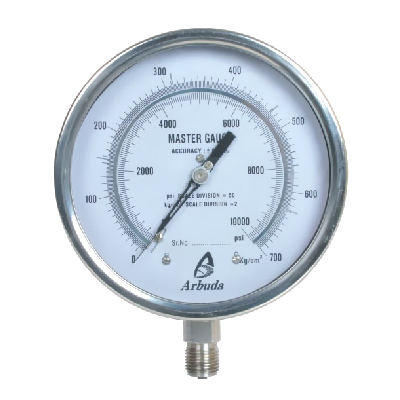

Master Gauge
