Product Profile of Universal Cnc Lathe & Chucker

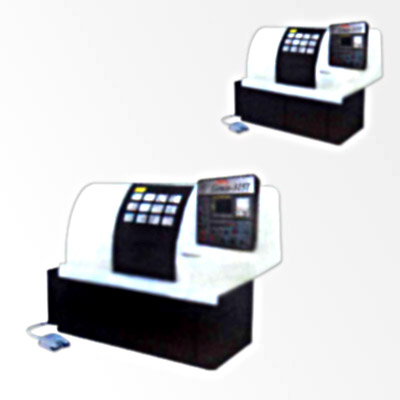

Pavan Precision Products supplies universal CNC lathe and chucker. Genie 315T is one of the model of this CNC lathe. Some technical data of this CNC lathe and chucker include: turning dia [max] - 480 mm; chuck size - 315 mm; bar capacity [max]- 65 mm; spindle nose - A2-8 type; spindle speed - 50-2500RPM- spindle power 30 min rating/continuous - 15/11 kW [alpha P22]; X-travel - 250 mm; Z-travel - 845 mm; rapid traverse - 20 m/min; CNC system - TC/Fanuc Oi TC make: and hardened and ground guide ways, C3-class ball screw. 8 station bi-directional tool turret, tailstock, slide inclined at 30 deg. Some salient features of this chucker include : 3 jaw power operated chuck [solid]; splash- guard and tray; coolant system; power draw bar; electronic hand wheel; thread cutting and CSS; standard tool holder 2 nos; set of operating tools; machine lamp; auto lubrication system; set of levelling and foundation bolts; telescopic covers for X-axis; panel A/c. manual of operation and maintenance; manual of electrical and hydraulic; and circuit diagram.
