Variable Speed Lathe

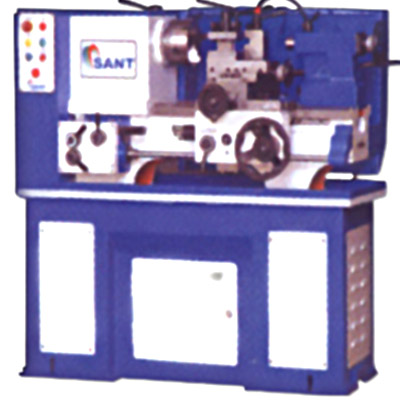

Sant Machine Tools Corporation provides heavy-duty variable speed lathe production machine. Model H35 VS is one of the model of this variable speed lathe. Following are some special features of this variable spped lathe include: alloy cast beds with 200?10 Bhn or hardened ground bed; screws and shafts from special steels with bronze nuts and bushes where required; hardened and precision ground main spindle, shafts and tailstock plunger with ground MT; super colour finish in matching double tone; and long time accuracy guaranteed. Standard accessories which are provided with this lathe are: 6" 3 jaw self cantering chuck, AL-25 collet chuck, complete electrical control panel, dead centres, tool post bolt spanner, chip tray and splash guard. Technical specifications include: length of bed - 3` 6"; width of bed - 280 mm; height of centre - 225 mm; swing over bed - 420 mm; swing over cross slide - 260 mm; spindle hollow - 42 mm; admit between centres - 380 mm; number of spindle speeds - 8 steps; range of spindle speeds - 100 to 1800 RPM; number of feeds - 4; taper in tail stock - MT-3; power required - 2 HP; approx weight - 500 kg; and overall dimensional features of this lathe include - L 1270 x B 750 x H 1200 mm.
