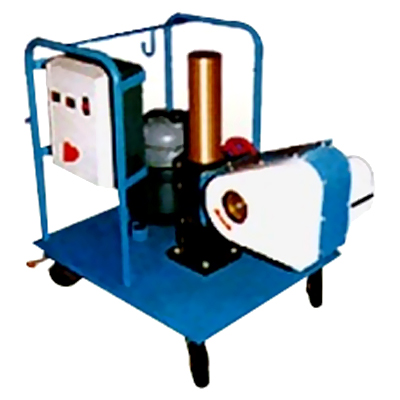

Wire Insulation Striping Machine

Product Profile of Wire Insulation Striping Machine
Wire Insulation Striping Machine is used to quickly remove the insulation of jelly filled telephone cable. The Machine comprises a vacuum container height adjustment system by rack & pinion and 2 hp electric motor with panel. Bootbhavani Fabricators manufactures Wire Insulation Striping Machine.

Bootbhavani Fabricators is the supplier of cable and wire machineries. Wire Insulation Striping Machine uses twin round wire brushes which are rotating at very high speed in opposite direction so that when the bunch of conductors are inserted, the insulation gets crushed quickly.
Product Specification of Wire Insulation Striping Machine
  • Electric Motor: 2HP, 2860 RPM, 3 Phase Flange mounted <br> Super Vac Model : WD-207, Vacuum Container <br> V-230, 50Hz, Current 5.5 A, lnput-1250 Watt <br> Electric Panel Board & Timing Pulley
  • Floor Space: 1100 x 800 mm.
  • Height: 1050
  • Working Area: 100 x 73 mm.
