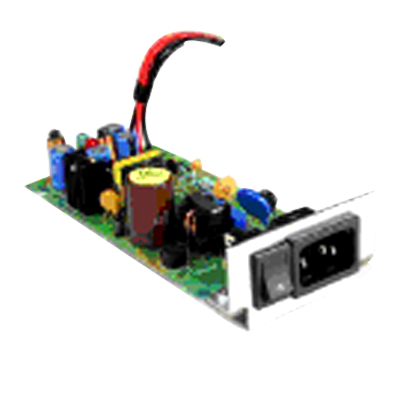

Multiple Output 12W AC to DC SMPS

Product Category : Smps Systems

Follow Category

Key Features of Multiple Output 12W AC to DC SMPS

High efficiency, high reliability & low cost
Maximum output power of 12w
Multiple outputs
Universal ac input 85v ~ 300vac
Built-in EMI filter.
Low ripple & noise
100% full load burn-in test

Enquire now

Product Profile of Multiple Output 12W AC to DC SMPS

Silicon Technologies supplies Multiple Output 12W AC to DC SMPS. Silicon Technologies is an ISO 9001:2000 certified company. Multiple Output 12W AC to DC SMPS is compact, light weight and low profile design. Multiple Output 12W AC to DC SMPS has a soft start circuit to limit the AC surge current. The switch mode power supply has the facility of optional input and output connectors also.

Key Features of Multiple Output 12W AC to DC SMPS

High efficiency, high reliability & low cost
Maximum output power of 12w
Multiple outputs
Universal ac input 85v ~ 300vac
Built-in EMI filter.
Low ripple & noise
100% full load burn-in test

Product Specification of Multiple Output 12W AC to DC SMPS

Input Voltage: (Min.-Max) 85-300 VAC
Input Frequency Range: (Min.-Max) 47-63
Output Voltage: (Min.-Max) 3.3-12 VDC
Operating Temperature: 40
Power: 12
Ripple and Noise: 1% Peak to Peak Maximum
Protection: Output protected for short circuit conditions
Temperature Coefficient: ?0.04% / ?C maximum
Storage Temperature: 85
Operating Humidity: 95
Efficiency: 70%
Line Regulation: ±1
Dimensions: 144 x 65 x 28
Construction: Open Frame
Insulation Resistance: 50M ohm minimum from output to ground
Input Inrush Current: 80A maximum at 25?C ambient temperature
Key Features: 1. High efficiency, high reliability & Low cost. 2. Maximum Output power of 12W 3. Multiple outputs 4. Universal AC input 85V ~ 300VAC
Other Features: 1. Optional input & output connectors. 2. Compact, light weight and low profile design. 3. 100% Full load burn-in test
