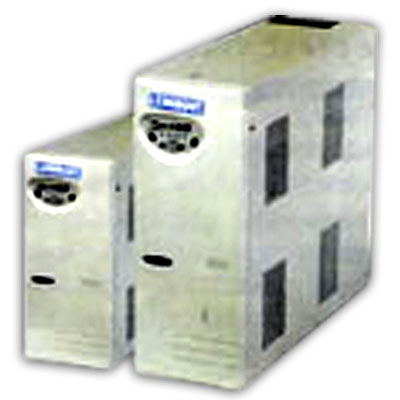

Online UPS System with Automatic Bypass

Product Profile of Online UPS System with Automatic Bypass
Online UPS System with Automatic Bypass is available with double conversion online topology. Radiant Power Systems Pvt Ltd offers Online UPS System with Automatic Bypass.

Radiant Power Systems Pvt Ltd is an ISO 9001-awarded company that also supplies line interactive system. Online UPS System with Automatic Bypass is offered with full time lightning and surge protection. The system is equipped with UPS monitoring software. It is available in fully microprocessor-controlled design. It is provided with smart self-diagnosis function. It is offered under Platinum Plus series.

Some salient features of Online UPS System with Automatic Bypass are:
  • Unity input power factor
  • Automatic battery test
  • Wide input voltage range
  • SNMP adaptor for network management [Optional]
  • Product Specification of Online UPS System with Automatic Bypass
    • Capacity: 1 KVA/700W, 2 KVA/1400W, 3 KVA/2100W
    • DC Voltage: 36, 72
    • Dimensions: 140 x 363 x 242, 140 x 422 x 373, 140 x 363 x 242
    • Frequency: 50Hz ±4.8Hz
    • Humidity: 0% to 9% (non-condensing)
    • Model: PLM 10, 20, 30
    • Noise Level: 40, 42
    • Overload Capacity: 105%-125% for 3 min; 125%-150% for 30sec;>150% for 1sec
    • Power Factor: >0.97
    • Regulation: 50Hz ±0.05Hz
    • Voltage Range: 160V(Full Load);130V-160V-160V(70% load
    • Weight: 15, 29, 8.1
