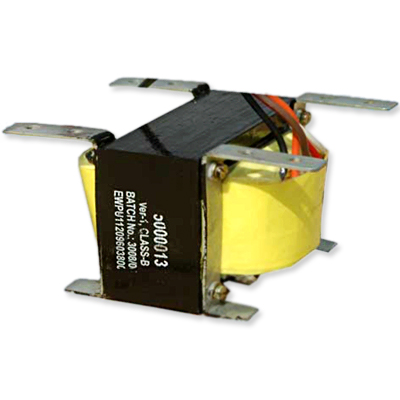

Product Profile of Transformer Uninterruptible Power Supply-UPS
Elmas Magnetics Pvt. Ltd. manufactures Transformer Uninterruptible Power Supply-UPS.
Elmas Magnetics Pvt. Ltd. is an ISO 9001:2000 Certified company manufacturing Transformers and Chokes.
Key Features of Transformer Uninterruptible Power Supply-UPS
- DC Resistance at 25 Deg C:
- Primary[Blk-Brn]: 13ohms Max
- Primary[Brn-Wht]: 4ohms Max
- Secondary-1[Brn-Blk]: 1 ohms Max
- Secondary-2[Wht-Blk]: 48mohms Max
- Core Loss[ at 210V Input, 50Hz]: 13 Watts Max
- Magnetizing Current[at 210V Input, 50Hz]: 160mA Max
- Primary[Brn-Red]: 42.5V+/-5%
- Primary[Red-Org]: 45V+/-5%
- Primary[Org-Wht]: 5.5V+/-10%
- Secondary-1[Brn-Blk]: 22V+/-5%
- Secondary-2[Wht-Red-Blk]: 7.8Vx2+/-5%
