Product Profile of Xpress 15,pcb Assembly & Testing Division
PCB Assembly & Testing Division of PCI LIMITED provides Xpress 15, protection of investment intelligent feeder technology`smart nozzles` true `on the fly` vision.

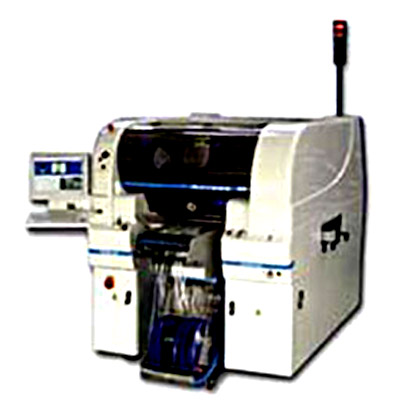

The Xpress 15T combines high speed and fine pitch capabilities within an ultra compact footprint. Loaded with `smart nozzle` technology, the system is fully compatible with Europlacer`s complete range of truly intelligent feeders. Its single placement head is equipped with the Tornado head including 12 nozzles and a full
`on the fly` vision system.
Xpress 15T boosts the speed of the Xpress 15 and gives you ultimate flexibility, irrespective of your application.
Specifications
-Placement heads 1 rotary head on X/Y gantry with 8 pick ups & a 24 position `smart` nozzle bank
-Placement rate 13 500 cph [IPC: 11 700 cph]
-Component Range 0201 to 50x50mm [70 x70mm and 100mm connectors in option]
-Minimum Pitch 0.4mm [0.3mm in option]
-Accuracy [3 sigma] +/- 45?m [QFP] to +/- 75?m [Chip]
-Feeder Capacity 92 * 8mm
-PCB Size Range 60 x 60mm to 500 x 460mm
